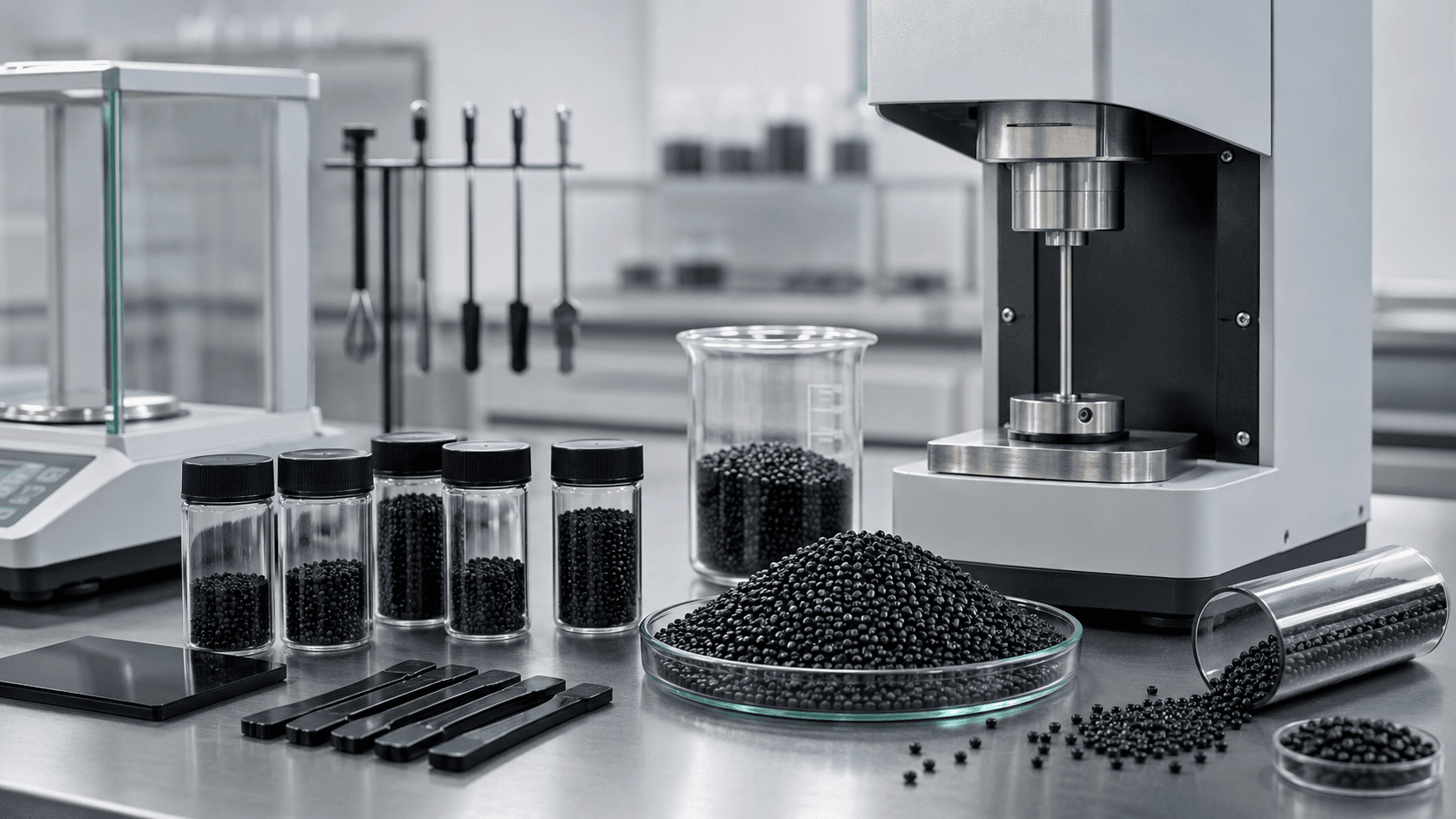

Common Testing Methods for Black Masterbatch
What Tests Are Important for Black Masterbatch?
Black masterbatch quality cannot be established by a single test or by carbon black content alone. A practical quality-control programme looks at carbon black content, ash, melt flow, water content, density, colour, dispersion and performance in the intended production process.
The appropriate tests depend on the masterbatch formulation, carrier resin, application and agreed product specification. Not every grade needs the same testing programme, and a satisfactory laboratory result does not guarantee successful processing on every production line. A result is only meaningful when its method, test conditions and units are stated.
Eight Common Black Masterbatch Quality Checks
| Quality check | What it evaluates | Important limitation |
|---|---|---|
| Carbon black content | Pigment concentration | Needs a method suited to the formulation |
| Ash content | Residue after ignition under prescribed conditions | Not carbon black content; does not identify individual fillers |
| Melt flow (MFR/MVR) | Flow behaviour at a stated temperature and load | Does not measure dispersion |
| Water content | Water in the material | Not the same as total loss on heating |
| Density | Density and lot-to-lot consistency | Cannot establish composition on its own |
| Colour and blackness | Appearance against an approved reference | Depends on specimen and measurement conditions |
| Dispersion | Breakdown of carbon black agglomerates | Results are method- and application-dependent |
| Processing trial | Performance in the intended process | Needs controlled, documented conditions |
These checks serve different purposes. Choosing a suitable combination is more useful than requesting a long list of results without understanding what each one shows. Before any laboratory test, a quick check of the packaging, labels, lot number and pellet appearance against a retained sample of the approved lot, looking for contamination, fines and uneven or stuck-together pellets, catches obvious problems early and is the first step of the incoming inspection described below.
TDS, COA, Third-Party Reports and Trials
Supplier and customer documents should be read according to their purpose:
| Document | Main purpose | What to check |
|---|---|---|
| TDS (technical data sheet) | Describes the grade with specification limits, typical properties or both | Product identity, methods, conditions, units and limitations |
| COA (certificate of analysis) | Reports results for a specified lot | Lot number, properties actually tested, methods and acceptance limits |
| Third-party test report | Documents a particular independent test | Exact grade, sample, standard, date and tested scope |
| Processing trial record | Documents performance under stated production conditions | Materials, settings, results and acceptance decision |
A TDS describes a grade; it is not a certificate that every production lot has been tested. A COA relates to one lot: check that the lot number matches the delivery and which properties were actually tested on that lot, and do not assume that every lot comes with a full set of test data. Agree in advance which properties the COA will report.
A third-party report covers the sample, standard and scope named on it; it is not a universal approval for other grades or for every product made with the same masterbatch family. For requirements such as RoHS, REACH or food contact, check the documentation for the specific grade, test conditions and destination market. Reports available for ZFH grades are listed on our quality and compliance page, each naming the grade it covers.
1. Carbon Black Content
Carbon black content is the mass fraction of carbon black in a masterbatch or compound. It is an important formulation and quality-control parameter, but a higher percentage does not automatically mean deeper blackness, better dispersion or better finished-product performance.
How Is Carbon Black Content Determined?
ASTM D1603-20 describes a gravimetric method for carbon black content in polyethylene, polypropylene and polybutylene plastics. A weighed specimen is pyrolysed under nitrogen to remove the polymer, and the residue is weighed; the residue is then heated in air to burn off the carbon black and weighed again, and the carbon black content is calculated from these masses.
The standard has important composition limits. It is not applicable to compositions that contain non-volatile pigments or fillers other than carbon black, or brominated flame-retardant additives, so it cannot give a direct carbon black figure for a filled masterbatch containing calcium carbonate, talc or other minerals. It is also not recommended for polymers modified with acrylic or other polar monomers, where the modification can affect the accuracy of the result. Recycled formulations and grades with other additional ingredients likewise need a method selected for the complete formulation.
Ash content, total residue and carbon black content are not interchangeable measurements. When reviewing a supplier's result, ask which method was used and whether it suits the carrier and additive system.
2. Ash Content
Ash is the residue remaining after a material is ignited under prescribed conditions; ISO 3451-1:2026 provides general methods for plastics. Under oxidising ashing conditions, carbon black burns away, so ash is not a measure of carbon black content. Ash results can help monitor formulation consistency, particularly in products containing inorganic ingredients.
Ash does not reveal which materials produced the residue. An ash result cannot by itself establish the exact calcium carbonate content or identify every inorganic component, and the value depends on the test conditions and on how the formulation behaves on ignition; calcium carbonate, for example, can lose carbon dioxide at high temperatures. Ash testing is a composition-related consistency check, not a substitute for direct carbon black determination or a full formulation analysis.
3. Melt Flow Rate (MFR/MVR)
Melt flow characterises how a thermoplastic flows under a specified temperature and load. ISO 1133-1:2022 gives procedures for the melt mass-flow rate (MFR), reported in g/10 min, and the melt volume-flow rate (MVR), reported in cm³/10 min. MVR is particularly useful when comparing materials with different filler contents, because density differences affect MFR.
Why Must Temperature and Load Be Reported?
A melt flow value without its test conditions is incomplete. A result measured at 190 °C under a 2.16 kg load should not be compared directly with one measured at a different temperature or load, and the conditions must suit the material; they are normally set by the material standard for the resin type. When reviewing a melt flow value, confirm:
- Test method and edition
- Test temperature and applied load
- Reported unit: g/10 min for MFR or cm³/10 min for MVR
- Sample preparation and conditioning, where relevant
- Whether the measurement was made on the masterbatch or on a diluted compound
A higher or lower melt flow is not universally better; the right flow behaviour depends on the polymer system and processing method. Melt flow alone cannot demonstrate good carbon black dispersion or carrier compatibility.
4. Water Content and Moisture
Excess moisture can cause processing problems in some polymer systems, and its relevance depends on the carrier resin, formulation, storage conditions and application. ISO 15512:2019 describes methods for determining water content in plastics, including Karl Fischer titration after extraction or vaporisation and a manometric method.
Moisture Versus Loss on Drying
Water content and loss on drying are not the same measurement. In a heating-based mass-loss test, volatile ingredients other than water may also be released, so for masterbatches containing waxes, additives or other volatile components, treating total mass loss as water content can be misleading. Report such a result as loss on drying, and identify the method and conditions on the test record.
Drying requirements should also be set grade by grade: a drying procedure that suits one polymer system should not automatically be applied to every black masterbatch.
5. Density
Density is a useful physical property for comparing a lot with its specification or a previously approved lot. ISO 1183-1:2025 describes three methods for non-cellular plastics: immersion for void-free solid specimens, a liquid pycnometer method for powders, flakes and granules, and a titration method. Choose the method that matches the physical form of the sample.
A density change may warrant investigation, but density depends on several formulation and processing factors. It cannot on its own establish the carbon black percentage, the inorganic filler content or the full composition. When comparing lots, keep the method, specimen condition and test temperature the same.
6. Colour, Blackness and Colour Difference
Appearance is often a major requirement for black masterbatch. Visual evaluation can be supported by instrumental colour measurement on properly prepared specimens, for example CIELAB coordinates or differences from an approved reference. ASTM D2244-25 is a practice for calculating colour differences and tolerances from instrumentally measured colour coordinates; it does not by itself measure how black a sample is.
Why Specimen Preparation Matters
Two samples can look different because of changes in specimen thickness, surface texture, gloss, base resin or pigment concentration. For a meaningful comparison, keep specimen preparation and measurement settings constant, and record the base resin, masterbatch addition ratio, specimen thickness, instrument geometry, illuminant and observer, colour-difference formula and the approved reference sample.
A colour difference value should be judged against the agreed appearance requirement. A low colour difference, deeper blackness and good dispersion are related but distinct quality objectives.
7. Carbon Black Dispersion
Dispersion affects how carbon black agglomerates appear and behave in the polymer. Depending on the application, evaluation can include film testing, filter pressure value testing, microscopy and examination of processed specimens; for example, ISO 23900-5:2015 describes a filter pressure value test and ISO 23900-6:2015 a film test, each within its own scope. Results must be interpreted with the actual method and conditions.
Rather than repeating the procedures here, see our guide to evaluating black masterbatch dispersion, which explains the methods, how to compare samples fairly and why visible defects do not always mean a pigment-dispersion problem.
8. Application and Processing Trials
Laboratory measurements are valuable, but the final evaluation should reflect the intended application. A masterbatch for blown film may need a different trial programme from one for injection moulding, pipe extrusion or cable sheathing. Useful observations include surface appearance, colour consistency, feeding stability, processing pressure and finished-product properties.
Record the base polymer, masterbatch grade, addition level, processing conditions and acceptance criteria, and whenever possible compare the candidate with an approved reference under equivalent conditions. A successful short trial is useful evidence, but it does not prove long-term performance or compliance with every application requirement.
Incoming Inspection, Supplier Comparison and Records
Before approving a new supplier or receiving a production lot, decide which checks are essential for the intended use. A practical plan:
- Check the delivery documents: grade, lot number and COA against the purchase order and the agreed specification.
- Inspect packaging and pellets for contamination, fines and uneven pellets, and compare them with a retained sample of the approved lot.
- Run the agreed routine checks under fixed conditions, for example melt flow with its temperature and load, and water content or loss on drying.
- For a new supplier, a new grade or a complaint, add the checks that matter for the application, such as carbon black content, ash, density, colour and dispersion.
- Confirm with a documented processing trial before releasing a new grade or supplier to full production.
- Keep retained samples, test records, COAs and trial settings for each lot.
Not every incoming lot needs every test; inspection frequency and sampling should reflect the application, product risk, supplier history and agreed quality requirements. Supplier comparisons answer two different questions, so keep them separate. A technical comparison tests all samples with the same methods and conditions, at the same final carbon black content in the part and on the same machine, to compare the masterbatches themselves. An application comparison runs each supplier's product at its own recommended addition ratio, to compare practical results and cost in use. Record which comparison was made, and remember that differences between suppliers' own test conditions are a common reason why their data cannot be compared directly.
Frequently Asked Questions
Can carbon black content alone determine masterbatch quality?
No. Carbon black content is a formulation parameter. Dispersion, carrier compatibility, melt behaviour, appearance and application performance also affect suitability.
Can MFI or MFR be compared without knowing the test conditions?
No. Temperature and applied load are essential for interpreting a melt flow result, and MFR (g/10 min) and MVR (cm³/10 min) are different measurements. The material and test method must also be considered.
Is ash content the same as carbon black or filler content?
No. Under oxidising ashing conditions carbon black burns off, and ash measures the remaining residue under specified conditions. It does not identify individual fillers or give their exact concentrations.
Does an oven weight-loss result always represent moisture?
No. Other volatile substances may contribute to the mass loss. A water-specific method is needed when the required property is water content.
Does a low colour difference guarantee good dispersion?
No. Instrumental colour difference and carbon black dispersion are different measurements. A sample may match the approved colour and still need dispersion evaluation for its intended application.
Must every black masterbatch pass the same tests?
No. The appropriate inspection programme depends on the formulation, polymer, processing method, product specification and regulatory requirements.
Related Guides
- How to evaluate black masterbatch dispersion
- How MFI affects black masterbatch processing
- How to choose a black masterbatch supplier
- How carbon black particle size affects blackness and opacity
Choosing a Black Masterbatch and Requesting Technical Data
A useful technical comparison starts with a clear description of the intended application. ZFH offers black masterbatch for different polymer systems and processing requirements, including standard PE/EVA black masterbatch and PP black masterbatch. To review a grade, share your base resin, processing method, required properties and inspection criteria, and contact ZFH to discuss grade selection and the product-specific technical documentation available.
Technical References
- ASTM D1603-20 — Carbon Black Content in Olefin Plastics
- ISO 1133-1:2022 — Melt mass-flow rate and melt volume-flow rate
- ISO 15512:2019 — Determination of water content
- ISO 3451-1:2026 — Determination of ash
- ISO 1183-1:2025 — Density of non-cellular plastics
- ASTM D2244-25 — Calculation of color differences
- ISO 23900-5:2015 — Filter pressure value test
- ISO 23900-6:2015 — Film test
These references describe relevant testing frameworks. Mentioning a standard does not establish that every ZFH grade has been tested under that standard. Actual testing and acceptance criteria must be confirmed through appropriate product-specific records.
